Product Details:
|
| Screen: | 12.1'' Capacitive Touch Panels | Ratio: | 16:10 |
|---|---|---|---|
| Glass: | 3mm Tempered Glass | Touch Type: | Capacitive Touch Panels |
| Customized: | Support Customized Glass | Cover Lens: | 3mm |
| Input Voltage: | 5V | Touch Points: | 10 Touch Points |
| High Light: | CJTOUCH Projected Capacitive Touch Screen,16:10 Projected Capacitive Touch Screen,12.1'' PCAP Touch Panel |
||
What is capacitive touch screen technology?
Capacitive touch screens are control displays that utilise the electrical properties of the human body as input. When a finger (or specialised input device, such as stylus) comes in contact with the display it detects when and where on the display the user touches it.
Applictions
Main Feature
What’s the Difference Between IR and PCAP Displays?
Infrared (IR) and Projected Capacitive (PCAP) are the two most common types of touch screen technologies. Although you may not be able to tell the difference when using an interactive touch screen unless you know how to identify which is which, they are quite different in structure and design. Below we’ll break down the difference between the two to give you better idea of why one might be better than the other for whatever purpose you may be buying or renting your touch systems for.
touch screen devices placed in the lobby. Financial institutions are places where Capacitive Touch Panel Screen are used a lot. The bank can help the business through the operation of the touch screen. It is more convenient for the handler to enter the information in advance and then go to the front desk to handle it.
Specification of Product
| Technical specification | |
| Type | Projected touch panel |
| Interface | USB |
| Number of touch point | 10 |
| input voltage | 5V ---- |
| Pressure endurance value | <10g |
| Input | Hand writing or capacitive pen |
| Transmittance | >90% |
| Surface Hardness | ≥6H |
| Usage | The specification is applied to transparent and handwriting input |
| capacitive touch panels | |
| Application | It's applied in ordinary electric equipments and automatic office facilities |
| Cover Lens Specification | |
| Pressure Value | 400 ~500 mPA above 6u |
| Ball Drop Test | 130g±2g, 35cm, No damage after the impact at the central area for once. |
| Hardness | ≥6H Pencil: 6H Pressure: 1N/45. |
| Environment | |
| Working temperature and humidity | -10~+60ºC, 20~85% RH |
| Storage temperature and humidity | -10~+65ºC, 20~85% RH |
| Humidity resistance | 85% RH, 120H |
| Heat resistance | 65ºC, 120H |
| Cold resistance | -10ºC, 120H |
| Thermal shock | -10ºC(0.5hour)-60ºC(0.5hour) by 50 cycles |
| Anti - glare Test | Incandescent lamp (220V,100W) , |
| operating distance over 350mm | |
| Altitude | 3,000m |
| Working Environment | Directly Under sunlight ,indoor and outdoor |
| Software(Firmware) | |
| Scanning | Auto full screen scanning |
| Operate system | Win 7,Win 8,Win10, Andriod,Linux |
| Calibration tool | Precalibrated & Software can be download in CJTouch Website |

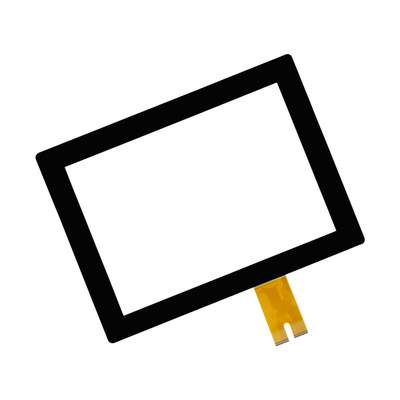

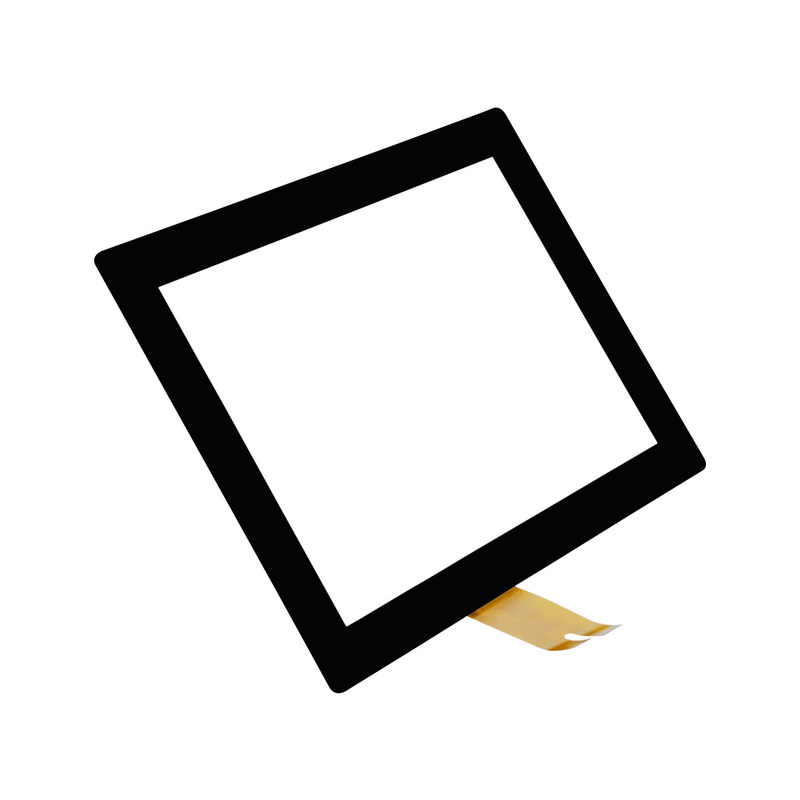

Picture of Product
Technical Drawing
