Product Details:
|
| Series: | Water-proof And Flat Screen | Active Area(mm): | 337.920(H)×270.336(V) |
|---|---|---|---|
| Resolution: | 1280×1024@60Hz | Viewing Angle (v/h): | 85°/80° |
| Contrast: | 1000:1 | Luminance(cd/m2): | 250 |
| Response Time(Rising): | 5ms/8ms | Touch System Interface: | USB Interface |
| Support Color: | 16.7M | Warranty: | 1 Year |
| High Light: | Vandalproof PCAP Touch Screen,75mm PCAP Touch Screen,17 Inch Usb Capacitive Touch Screen |
||
Vandalproof 17 inch Flat Screen PCAP Touch Monitor with VESA mount 75mm
17 inch PCAP touch monitor Features:
Dongguan CJTouch Electronic Co., Ltd. is a leading provider of Touchscreen, Touch monitor and All-in-one computers. With advanced, cost-effective touch solutions, CJTouch believes in engaging with customers while providing customized services. (More information : www.cjtouch.com )
Technology:
CJTouch has always relied on continuous innovation to stay ahead in touch technology. We are committed to delivering the most cutting-edge solutions in the industry.
Surface Acoustic Wave (SAW) touch technology
Infrared touch technology
Projected Infrared Touch technology
Applications:
We offer an extensive array of services with products being widely used in industries such as finance, gaming, retail, kiosk, health care, education, etc.
17 inch Capacitive touch monitor specification :
| General | |
| Model | COT170-CFF03 |
| Series | Water-proof and Flat screen |
| LCD Type | 17” Active matrix TFT-LCD |
| Video Input | VGA, DVI and HDMI |
| OSD controls | Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
| Power Supply |
Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz Output voltage/current: 12 volts at 4 amps max |
| Mount Interface |
1)VESA 75mm and 100mm 2)Mount bracket, horizontal or vertical |
| LCD Specification | |
| Active Area(mm) | 337.920(H)×270.336(V) |
| Resolution | 1280×1024@60Hz |
| Dot Pitch(mm) | 0.264×0.264 |
| Nominal Input Voltage | +5.0V(Typ) |
| Viewing angle (v/h) | 85°/80° |
| Contrast | 1000:1 |
| Luminance(cd/m2) | 250 |
| Interface | LVDS |
| Response Time(Rising) | 5ms/8ms |
| Support color | 16.7M |
| Backlight MTBF(hr) | 30000 |
| Touchscreen Specification | |
| Type | Cjtouch Projected Capacitive touch screen |
| Multi touch | 10points touch |
| Touch Life Cycle | 10 millions |
| Touch Response time | 8ms |
| Touch System Interface | USB interface |
| Power consumption | +5V@80mA |
| External AC Power Adapter | |
| Output | DC 12V /4A |
| Input | 100-240 VAC, 50-60 Hz |
| MTBF | 50000 hr at 25°C |
| Environment | |
| Operating Temp. | 0～50°C |
| Storage Temp. | -20～60°C |
| Operating RH: | 20%～80% |
| Storage RH: | 10%～90% |
Components:
USB Cable 180cm*1 Pcs,
VGA Cable 180cm*1 Pcs,
Power Cord with Switching Adapter *1 Pcs,
Bracket*2 Pcs
17 inch PCAP touch monitor drawing:

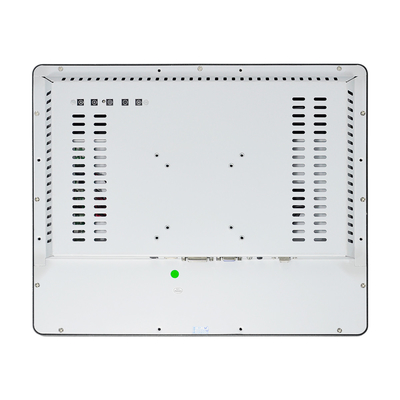

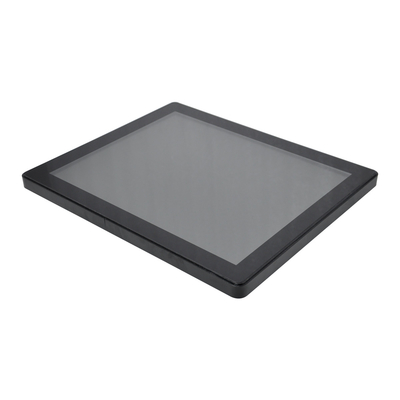

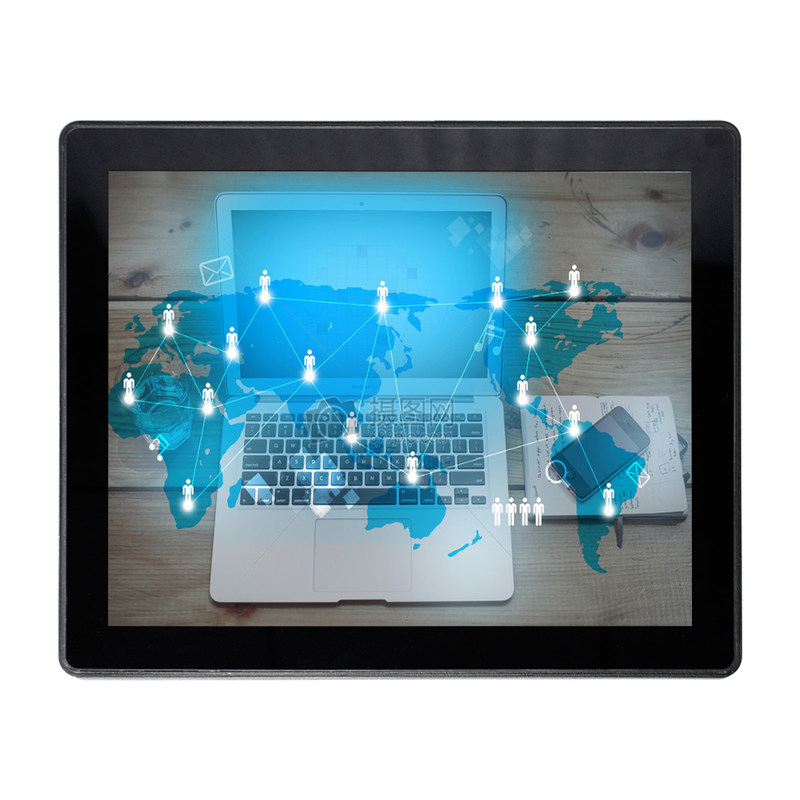

17 inch Capacitive display monitor pictures:
