Product Details:
|
| Series: | Water-proof And Flat Screen | Aspect Ratio: | 16:9 |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080 (FHD)(60Hz) | Viewing Angle (v/h): | 178/178 |
| Contrast: | 1000:1 | Luminance(cd/m2): | 250 |
| Response Time(Rising): | 14 Ms | Power Supply: | DC 12V 4A |
| Warranty: | 1 Year | ||
| High Light: | Multi Touch PCAP Touch Display,Waterproof PCAP Touch Display,21.5 Inch Portable Monitor Touchscreen |
||
Waterproof multi-touch 21.5 inch PCAP Touch Monitor for Kiosk touch solutions custom sizes available
Dongguan CJTouch Electronic Co., Ltd. is a leading provider of Touchscreen, Touch monitor and All-in-one computers. With advanced, cost-effective touch solutions, CJTouch believes in engaging with customers while providing customized services. (More information : www.cjtouch.com ).
21.5 inch PCAP touch monitor Features:
Ture flat touchscreen desigh
Support 10 points multi touch
With 3mm tempered glass, waterproof/ vandalproof/ dustproof/ sunlight readable option
Operation system: Wins/ Linus/ Andriod
Customer customization can be accepted
What We Offer:
21.5 inch Capacitive touch monitor specification :
| Display Specifications | ||||
| Characteristic | Value | Comment | ||
| LCD Size/Type | 21.5” a-Si TFT-LCD | |||
| Aspect Ratio | 16:9 | |||
| Active Area | Horizontal | 476.64 mm | ||
| Vertical | 268.11 mm | |||
| Pixel | Horizontal | 0.24825 | ||
| Vertical | 0.24825 | |||
| Panel Resolution | 1920(RGB)×1080 (FHD)(60Hz) | Native | ||
| Display Color | 16.7 Million | 6-bits + Hi-FRC | ||
| Contrast Ratio | 1000:1 | Typical | ||
| Brightness | 250 nits | Typical | ||
| Response Time | 14 ms | Typical | ||
| Viewing Angle | Horizontal | 178 | Typical | |
| Vertical | 178 | |||
| Video Signal Input | VGA and DVI and H-DMI | |||
| Physical Specifications | ||||
| Dimensions | Width | 520 mm | ||
| Height | 337.6mm | |||
| Depth | 44.9mm | |||
| Electrical Specifications | ||||
| Power Supply | DC 12V 4A | Power Adapter Included | ||
| 100-240 VAC, 50-60 Hz | Plug Input | |||
| Power Consumption | Operating | 38 W | Typical | |
| Sleep | 3 W | |||
| Off | 1 W | |||
| Touch Screen Specifications | ||||
| Touch Technology | Project Capacitive Touch Screen 10 Touch Point | |||
| Touch Interface | USB (Type B) | |||
| OS Supported | Plug and Play | Windows All (HID) ,Linux (HID) (Android Option) | ||
| Driver | Driver Offered | |||
| Environmental Specifications | ||||
| Condition | Specification | |||
| Temperature | Operating | -10°C ~+ 50°C | ||
| Storage | -20°C ~ +70°C | |||
| Humidity | Operating | 20% ~ 80% | ||
| Storage | 10% ~ 90% | |||
| MTBF | 30000 Hrs at 25°C | |||
Components:
USB Cable 180cm*1 Pcs,
VGA Cable 180cm*1 Pcs,
Power Cord with Switching Adapter *1 Pcs,
Bracket*2 Pcs
21.5 inch PCAP touch monitor drawing:

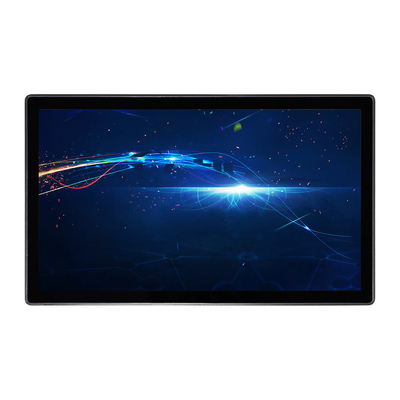

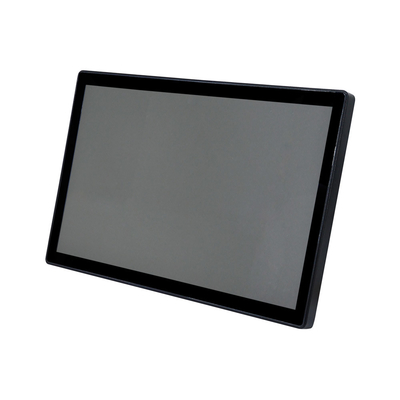

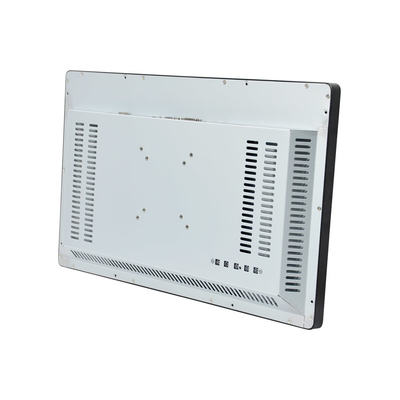

21.5 inch Capacitive display monitor pictures:
