Product Details:
|
| Series: | Water-proof And Flat Screen | Viewing Angle (v/h): | 160/160 |
|---|---|---|---|
| Resolution: | 800×600@60Hz | Aspect Ratio: | 16:9 |
| Luminance(cd/m2): | 300 | Response Time(Rising): | 30 Ms |
| Contrast: | 800:1 | Power Supply: | DC 12V 4A |
| Warranty: | 1 Year | ||
| High Light: | 10 Points Portable LCD Screen,60Hz Portable LCD Screen,LCD Capacitive Touch Panel |
||
13.3 inch 10 points multi-touch PCAP touch monitor capacitive touch panel lcd touch monitor power supply dc 12v
Technology:
CJTouch has always relied on continuous innovation to stay ahead in touch technology. We are committed to delivering the most cutting-edge solutions in the industry.
Surface Acoustic Wave (SAW) touch technology
Infrared touch technology
Projected Infrared Touch technology
Applications:
We offer an extensive array of services with products being widely used in industries such as finance, gaming, retail, kiosk, health care, education, etc.
Our service strength
Your any inquiry or question will be replied within 24hrs.
Custom are well welcomed,regarding the interfaces,functions,images,structures,etc.We have professional engineer team to realize your idea.
You can find the right product you want,whatever the most competitive price or Highest quality!
13.3 inch PCAP touch monitor Features:
Projected capacitive touch technology
High quality LCD display panel with excellent viewing angle
Achieve 5/10 points multi touch
Multilingual on-screen display (OSD)
VESA hole or mount bracket, horizontal or vertical
Fully RoHS,FCC certification
LCD backlight MTBF 30000
13.3inch Capacitive touch monitor specification :
| Display Specifications | |||||
| Characteristic | Value | Comment | |||
| LCD Size/Type | 13.3” a-Si TFT-LCD | ||||
| Aspect Ratio | 16:9 | ||||
| Active Area | Horizontal | 293.76 mm | |||
| Vertical | 165.24 mm | ||||
| Pixel | Horizontal | 0.051 | |||
| Vertical | 0.153 | ||||
| Panel Resolution | 1920(RGB)×1080 (FHD)(60Hz) | Native | |||
| Display Color | 262K , 100% sRGB | 6-bits + Hi-FRC | |||
| Contrast Ratio | 800:1 | Typical | |||
| Brightness | 300 nits | Typical | |||
| Response Time | 30 ms | Typical | |||
| Viewing Angle | Horizontal | 160 | Typical | ||
| Vertical | 160 | ||||
| Video Signal Input | VGA and DVI and HDMI | ||||
| Physical Specifications | |||||
| Dimensions | Width | 351 mm | |||
| Height | 220 mm | ||||
| Depth | 40mm | ||||
| Electrical Specifications | |||||
| Power Supply | DC 12V 4A | Power Adapter Included | |||
| 100-240 VAC, 50-60 Hz | Plug Input | ||||
| Power Consumption | Operating | 38 W | Typical | ||
| Sleep | 3 W | ||||
| Off | 1 W | ||||
| Touch Screen Specifications | |||||
| Touch Technology | Project Capacitive Touch Screen 10 Touch Point | ||||
| Touch Interface | USB (Type B) | ||||
| OS Supported | Plug and Play | Windows All (HID) ,Linux (HID) (Android Option) | |||
| Driver | Driver Offered | ||||
| Environmental Specifications | |||||
| Condition | Specification | ||||
| Temperature | Operating | -10°C ~+ 50°C | |||
| Storage | -20°C ~ +70°C | ||||
| Humidity | Operating | 20% ~ 80% | |||
| Storage | 10% ~ 90% | ||||
| MTBF | 30000 Hrs at 25°C | ||||
Components:
USB Cable 180cm*1 Pcs,
VGA Cable 180cm*1 Pcs,
Power Cord with Switching Adapter *1 Pcs,
Bracket*2 Pcs
13.3 inch PCAP touch monitor drawing:

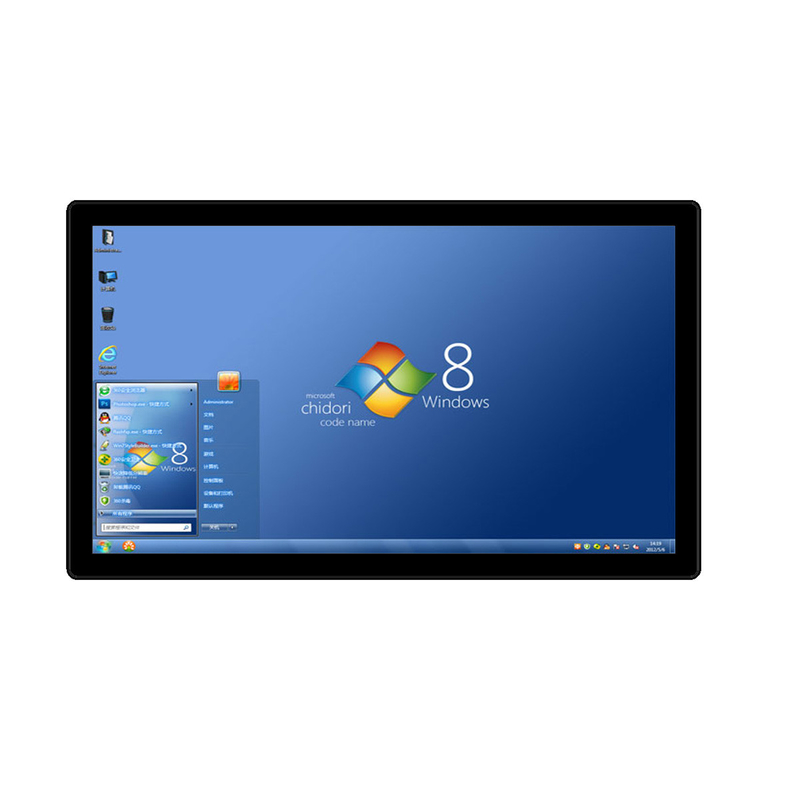

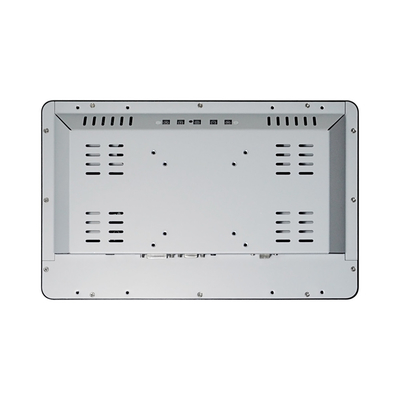

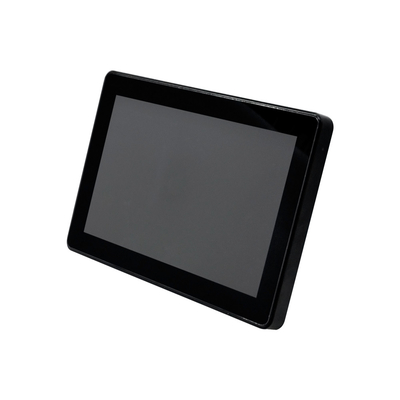

13.3 inch Capacitive display monitor pictures:
