Product Details:
|
| Series: | Flat Screen Frameless Waterproof | Resolution: | 800×600@60Hz |
|---|---|---|---|
| Luminance(cd/m2): | 300 | Response Time(Rising): | 30 Ms |
| Viewing Angle (v/h): | 70/70/60/70 (Typ.)(CR≥10) | Contrast: | 800:1 |
| Power Supply: | DC 12V 4A | Warranty: | 1 Year |
| High Light: | Flat Screen PCAP Touch Monitor,Frameless PCAP Touch Monitor,10.4 Inch Projected Capacitive Touch Monitor |
||
10.4 inch Flat Screen Frameless PCAP Touch Monitor vandalproof projected capacitive touch monitor
Unlike resistive touch screen, capacitive touch screen does not rely on fingers to create and change voltage values to detect coordinates. Capacitive screens work through anything that holds an electric charge including human skin.CJTOUCH PCAP touch monitors are vandal-proof and waterproof. With the resistance to light interference, it is applicable to harsh environment.
10.4 inch PCAP touch monitor Features:
Simple desigh with good stability performance
Ture flat touchscreen desigh
Support 10 points multi touch
With 3mm tempered glass, waterproof/ vandalproof/ dustproof/ sunlight readable option
Operation system: Wins/ Linus/ Andriod
Customer customization can be accepted
Our service strength
Your any inquiry or question will be replied within 24hrs.
Custom are well welcomed,regarding the interfaces,functions,images,structures,etc.We have professional engineer team to realize your idea.
You can find the right product you want,whatever the most competitive price or Highest quality!
Applications:
We offer an extensive array of services with products being widely used in industries such as finance, gaming, retail, kiosk, health care, education, etc.
10.4inch Capacitive touch monitor specification :
| General | |
| Model | COT104-CFF02 |
| Series | Flat screen frameless waterproof |
| Monitor Dimensions | Width: 269mm Height: 209mm Depth: 40mm |
| LCD Type | 10.4” Active matrix TFT-LCD |
| Video Input | VGA and DVI |
| OSD controls | Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
| Power Supply |
Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz Output voltage/current: 12 volts at 4 amps max |
| Mount Interface |
1)VESA 75mm and 100mm 2)Mount bracket, horizontal or vertical |
| LCD Specification | |
| Active Area(mm) | 211.2x158.4 mm |
| Resolution | 800×600 @60Hz |
| Dot Pitch(mm) | 0.264×0.264 |
| Nominal Input Voltage | +3.3V(Typ) |
| Viewing angle (v/h) | 70/70/60/70 (Typ.)(CR≥10) |
| Contrast | 800:1 |
| Luminance(cd/m2) | 300 |
| Response Time(Rising) | 30 (Typ.)(Tr+Td) ms |
| Support Color | 16.2M/262K colors |
| Backlight MTBF(hr) | 10000(Min) |
| Touchscreen Specification | |
| Type | Cjtouch Projected Capacitive touch screen |
| Multi touch | 5points touch |
| Touch Life Cycle | 10 millions |
| Touch Response time | 8ms |
| Touch System Interface | USB interface |
| Power consumption | +5V@80mA |
| External AC Power Adapter | |
| Output | DC 12V /4A |
| Input | 100-240 VAC, 50-60 Hz |
| MTBF | 50000 hr at 25°C |
| Environment | |
| Operating Temp. | 0～50°C |
| Storage Temp. | -20～60°C |
| Operating RH: | 20%～80% |
| Storage RH: | 10%～90% |
Components:
USB Cable 180cm*1 Pcs,
VGA Cable 180cm*1 Pcs,
Power Cord with Switching Adapter *1 Pcs,
Bracket*2 Pcs
10.4 inch PCAP touch monitor drawing:

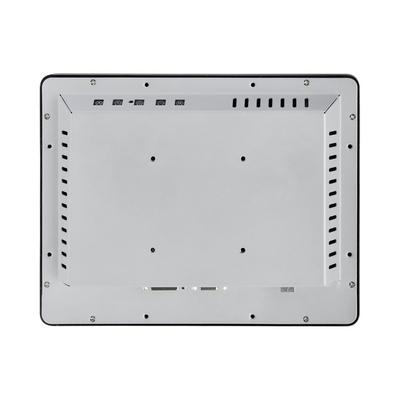

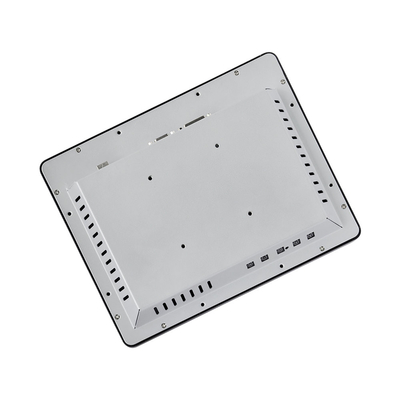

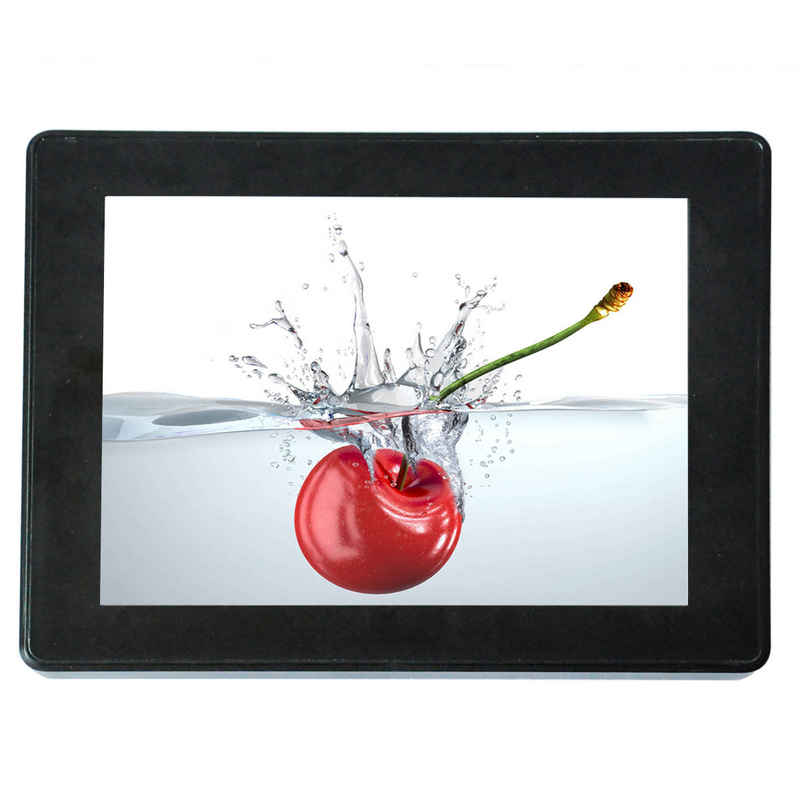

10.4 inch Capacitive display monitor pictures:
