Product Details:
|
| Series: | Open Frame | Resolution: | 1024×768 @60Hz |
|---|---|---|---|
| Active Area(mm): | 162.048(W) × 121.536(H) Mm | Luminance(cd/m2): | 400 Cd/m² |
| Response Time(Rising): | 25msec | Viewing Angle (v/h): | 80/80/80/80(Typ.)(CR≥10) (Top/Button/Left/Right) |
| Contrast: | 700:1 | Power Supply: | DC 12V /4A |
| Warranty: | 1 Year | ||
| High Light: | 400 Cd/M2 PCAP Touch Monitor,Open Frame PCAP Touch Monitor,Vandalproof 8 Inch Touch Monitor |
||
Vandalproof 8 inch Flat Screen Open Frame PCAP Touch Monitor with 10 points touch
Experience:
Established in 2006 and headquartered in Dongguan, China, CJTouch has proven to be reliable and trustworthy partners to help seamlessly integrate our products into your total solution.
Over 10 years of combined experience in researching and developing touch-enabled screens and monitors.
Two factories with over 200 skilled and qualified employees, including R & D engineers, technical experts and sales representatives.
What We Offer:
Through our consistent and high quality performance, CJTouch has got ISO 9001 certified and has earned CE, UL, FCC, RoHS and other international certifications.
Single & Multi-touch screens (custom sizes available)
Single & Multi-touch monitors (custom sizes and functions available)
All-in-one computers
Applications:
We offer an extensive array of services with products being widely used in industries such as finance, gaming, retail, kiosk, health care, education, etc.
8 inch PCAP touch monitor Features:
8 inch Capacitive touch monitor specification :
| General | |
| Model | COT080-CPF02 |
| Series | Open frame |
| Monitor Dimensions | Width: 209mm Height: 172mm Depth: 42mm |
| LCD Type | 8” Active matrix TFT-LCD |
| Video Input | VGA and DVI |
| OSD controls | Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
| Power Supply |
Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz Output voltage/current: 12 volts at 4 amps max |
| Mount Interface |
1)VESA 75mm and 100mm 2)Mount bracket, horizontal or vertical |
| LCD Specification | |
| Active Area(mm) | 162.048(W) × 121.536(H) mm |
| Resolution | 1024×768 @60Hz |
| Dot Pitch(mm) | 0.15825×0.15825 mm |
| Nominal Input Voltage | +3.3V(Typ) |
| Viewing angle (v/h) | 80/80/80/80(Typ.)(CR≥10) (Top/Button/Left/Right) |
| Contrast | 700:1 |
| Luminance(cd/m2) | 400 |
| Response Time(Rising) | 25msec |
| Support Color | 16.7M Colors |
| Backlight MTBF(hr) | Min 20000 hrs |
| Touchscreen Specification | |
| Type | Cjtouch Projected Capacitive touch screen |
| Multi touch | 5points touch |
| Touch Life Cycle | 10 millions |
| Touch Response time | 8ms |
| Touch System Interface | USB interface |
| Power consumption | +5V@80mA |
| External AC Power Adapter | |
| Output | DC 12V /4A |
| Input | 100-240 VAC, 50-60 Hz |
| MTBF | 50000 hr at 25°C |
| Environment | |
| Operating Temp. | 0～50°C |
| Storage Temp. | -20～60°C |
| Operating RH: | 20%～80% |
| Storage RH: | 10%～90% |
Components:
USB Cable 180cm*1 Pcs,
VGA Cable 180cm*1 Pcs,
Power Cord with Switching Adapter *1 Pcs,
Bracket*2 Pcs
8 inch PCAP touch monitor drawing:

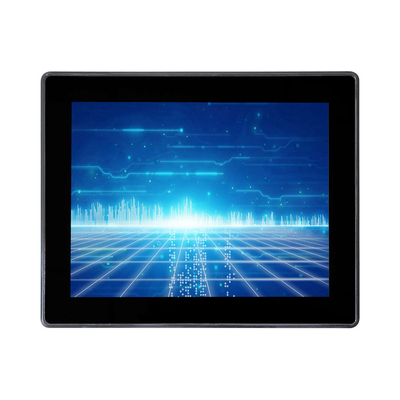

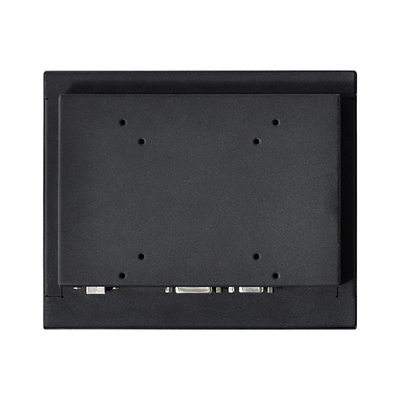

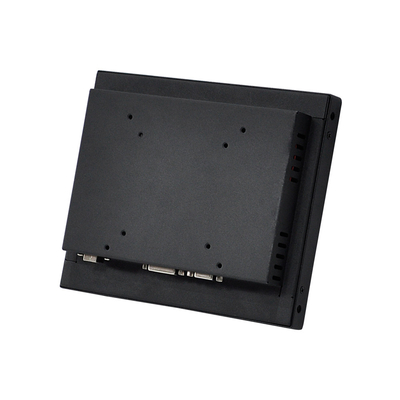

8 inch Capacitive display monitor pictures:
