Product Details:
|
| Type: | Capacitive | Size: | 19 Inch |
|---|---|---|---|
| Driver: | Plug And Play | Touch Point: | 10 Touch Points |
| Interface: | USB | HS Code: | 8471609000 |
| High Light: | PCAP Touch Foil 10 Points,19 Inch PCAP Touch Foil,Industrial touch foil screen |
||

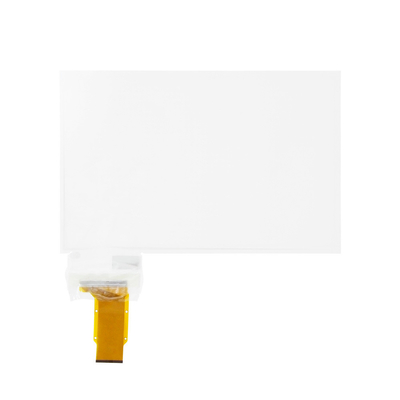

What is Nano Touch foil?
Touch foil is a transparent IPCT film which can perceive human finger touch across substrate , glass or acrylic plate etc., realizing accurate location by electrostatic induction.
It is the core component of the touch screen and other precise positioning device. No driver required, support various operation system, plug and play, support 10 to 30 touch points, maximum thickness of glass 8mm, size including 22 to 86 inch, can do customized for other sizes
Advantages of our touch foil:
Specification
| Type | Nano-touch film |
| Power input | 5V USB |
| Number of touch point | 10-30 touch points |
| Power mode | USB2.0 |
| Thickness | ≤100um |
| Transmittance | >93% |
| Touch mode | click, move, zoom, in /out, rotating |
| Working enviroment | -20ºC~60ºC |
| Working Environment | Directly Under sunlight ,indoor and outdoor |
| Tail version | Base or bottom |
| The number of wires | Nano-wires 110 Road/160 Road |
| Software(Firmware) | |
| Scanning | Auto full screen scanning |
| Scanning frequency | 60Hz~130hz |
| Operate system | Windows 7,Windows 8,Windows 10, Andriod,Linux |
| Calibration tool | Precalibrated & Software can be download in CJTouch Website |
| Nano-touch film - SERIES:22"-84" | |
Techinical Drawings

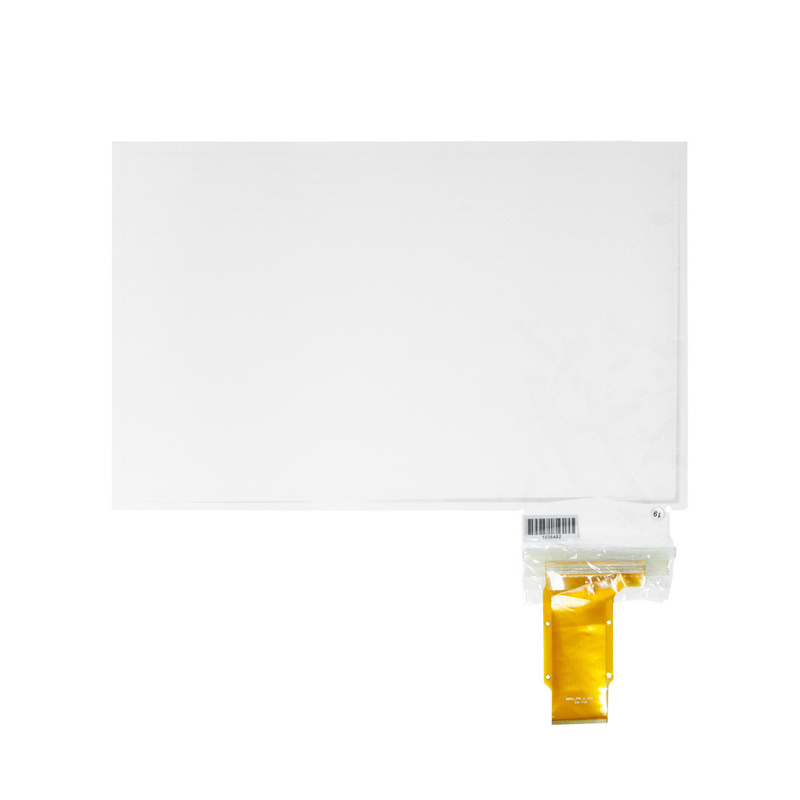

Detail images
Parameter comparison
By contrast we found that more than 30 inches touch market, the metal mesh film capacitors with all other similar products on the technical parameters of the method compared to no advantage.
| Touch technology | Accuracy | Size | Anti-injury | Price | Installation |
| Infrared(IR) | General | Multible sizes | Prolonged use will reduce accuracy, need to be replaced | Cheap | Need structure parts to complex |
| Optical screen | General | Multible sizes | Sensitivity to light | General | |
| Resistive | General | Small and medium size | Surface scratches easily | Cheap | Design with requirement |
| Capacitive | Accurate | 32 inches or less | No damage | Expensive | |
| Nano-Films | Accurate | Professional Large size | No damage | Cheap | Easy Installation |
Application
Instructions
How to install touch foil for your L CD or projector to realize touch function?
Taking LCD screen as an example, the following materials need to be prepared first,
glass+touch film+l _CD screen+control host+casing+wire,
and then start installation: prepare a large glass, determine the projection position,
and stick the selected touch film between the glass and LCD screen;
Connect and fix the control board, and then connect the control board with the control host;Connect the USB cable to the metal backplane, install the driver, and use it after debugging
