Product Details:
|
| Type: | Capacitive | Size: | 60 Inch |
|---|---|---|---|
| Driver: | Plug And Play | Touch Point: | 10 Touch Points |
| Available Size: | 10.1"-86" | Available Touch Points: | 10-40 Points |
| High Light: | 60" Touch Foil Film,Sis Controller Touch Foil Film |
||
What is touch foil?
We use a unique transparent touch foil that can be controlled through the glass.
Everything is installed on the inside of the shop window.
Our Touch Foil can be combined with projection or LCD screens to create an interactive shop window, outdoor/indoor kiosks, digital signage, touch screen table and LCD monitor etc.
CJTouch Foil acts as an eye-catcher, it creates instant interactivity.
Why the touch foil becomes more and more popular?
1. Lightweight foil simple to apply to a window, glass, acrylic, and rear projection screens.
2. No requirement to have any external wires or devices as all of the touch screen components are situated safely behind the glass.
3.High quality transparent multi-touch foils (up to 40 touch points),multi touch function – glass up to 12mm thick.
4. Works with all existing multimedia applications PowerPoint, Macromedia Flash, Web sites, etc.
5. Not sensitive to outer light, the change of light would not affect.
6. Wide range of screen regular sizes available up to 100" 4: 3 or 16: 9 format.
7.Includes full installation kit – touch foil, controller board & USB line.
8.No mechanical or pressure-sensitive elements, durable and stable.
9. Easy to install software .
10.Accurate positioning.
11.High-resolution controller.
General Specification
| Scanning speed | 8 ms / fram |
| Driver | Drive-free |
| Windows | Win7/8/8.1/10 |
| Andriod | Kernel version 3.10+ or higher |
| Linux | Kernel version liunx3.10+ or higher |
| Customization | Support |
| Waterproof | Yes |
| Deviation calibration | Software calibration |
| Package list | Touch foil*1, controller*1,1.5m USB cable *1 |
| Thickness | ≤200um |
| Transparency | More than80% |
| Supply voltage | 5V |
| Transfer method | USB2.0 |
| Safe distance | 2-5mm(distance between LED and touch foil) |
| Transmission distance | ≤50m(add USB signal amplifier, etc) |
| Support gesture | Click, drag, zoom, rotate |
| Ambient light | The whole point of the anti-glare |
| Sensing distance | ≤10mm |
Lead time
|
Series/Size
|
1 Pieces
|
50 Pieces
|
200 Pieces
|
500 Pieces &above
|
|
15.6 inch
|
5 workdays
|
7 workdays
|
8-10 workdays
|
10-15 workdays
|
|
17.1 inch
|
5 workdays
|
7 workdays
|
8-10 workdays
|
10-15 workdays
|
|
18.5 inch
|
5 workdays
|
7 workdays
|
8-10 workdays
|
10-15 workdays
|
|
19 inch
|
5 workdays
|
7 workdays
|
8-10 workdays
|
10-15 workdays
|
|
21.5 inch
|
5 workdays
|
7 workdays
|
8-10 workdays
|
10-15 workdays
|
|
22 inch
|
5 workdays
|
7 workdays
|
8-10 workdays
|
10-15 workdays
|
|
24 inch
|
5 workdays
|
7 workdays
|
8-10 workdays
|
10-15 workdays
|
|
27 inch
|
5 workdays
|
7 workdays
|
8-10 workdays
|
10-15 workdays
|
|
32 inch
|
5 workdays
|
7 workdays
|
8-10 workdays
|
10-15 workdays
|
|
43 inch
|
5 workdays
|
7 workdays
|
8-10 workdays
|
10-15 workdays
|

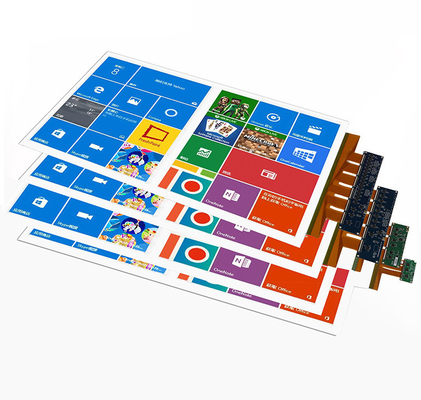

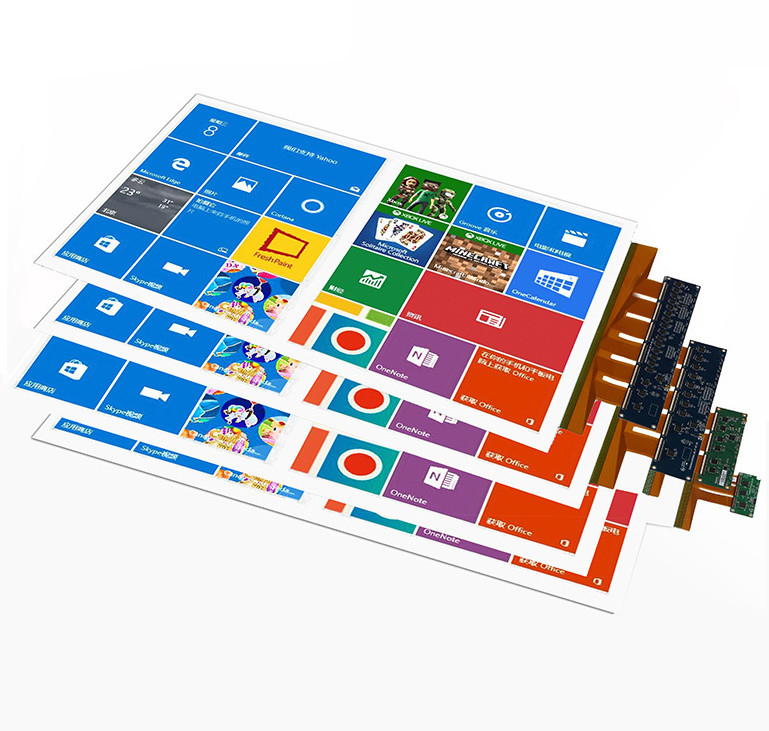

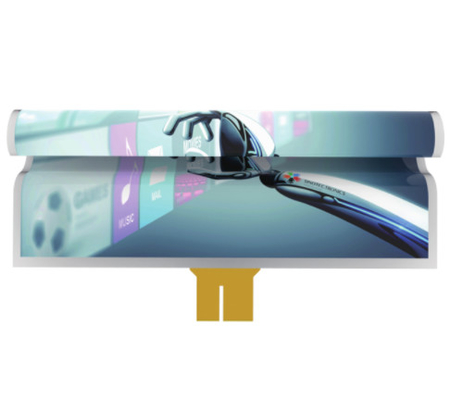

Detail images
