Product Details:
|
| Product Name: | PCAP Touch Foil | Driver Type: | Free Driver |
|---|---|---|---|
| Touch Points: | 10-40 Touch Points Optional | Available Aize: | 15-86" |
| Response Time: | 2.5ms | Tail Direction: | Side Or Bottom |
| High Light: | PCAP Capacitive Touch Screen Film,75 Inch Capacitive Touch Screen Film,Interactive capacitive touch film |
||
Touch Foil 15.6" 17'' 18.5'' 21.5" 27" 32" 37" 40" 43" 47" 50" 55" 60" 65" 70" 75" 80" 84"
interactive touch screen foil,Touch Screen Foil,Touch Foil Film.
CJTouch Multi-touch foil is an innovation core part of touch screen, support 10,12,20,40 touch points
CJTouch Multi-touch foil is an optically clear, large format projected capacitance film that can be applied to and works through glass and other non-metallic surfaces. This Multi-touch foil technology can transforms any glass or acrylic surface into a touch screen. It is an ideal choice for interactive window displays.
Main Features
General Specification
| Technical Parameters | |||
| Regular Size: | 15''-84''(XTM Series) | Other Size: | 33"-300" |
| Touch Points: | 10 Points | Deviation: | ≤0.5mm |
| Power Supply: | USB(5V+/-5%DC) | Calibration: | Software Calibration |
| Thickness: | ≤200um | Transmittance: | >93% |
| Voltage: | 5V | Transmission: | USB2.0 |
| Transmit Distance: | ≤50m(Add USB Signal Amplifier) | Safe Distance: | 2mm |
| OperatingnTemperature: | -20℃ ~ 70℃ | Storage Temperature: | -20℃ ~ 80℃ |
| Touch Gesture: | Click,Drag,Zoom,Rotate | Warranty: | 1 Year |
| Ambient Lightness: | Full-angle Anti-glare Illumination | Packing List: | Touch Foil*1 , Controller*1 , USB Cable*1 |
| Support Systems: | Windows,Android,Linux | Certificates: | CE,FCC,RoHS |
| Detection Method: | Projected Capacitance technology using horizontal vertical wires |
| Screen ratio: | Available in 4: 3 & 16: 9 format. |
| Position accuracy: | Approximately 3mm absolute, 1 mm relative. No drift |
| Alignment: | Software drivers provide a calibration facility |
| Sensitivity: | Adjustable by software. Can be programmed for different thickness of glass and even use with gloved hands. Functions with non-mertalise, single construction glass 16mm thick. |
| Speed of response: | Depends upon glass thickness. Typically 50 to 100ms. |
| Output: | RS232C communications to a 9 pin D female or USB Port |
| Software Compatibility: | Windows XP & Vista. Windows7 windows8 Android,Linux,MOC |
| Temperature range: | Better than -10 to +70 |
| Humidity Controller: | 0% to 95%. Unaffected by condensation |
| Light Transmission: | Depend upon glass thickness, typically better than 95% |

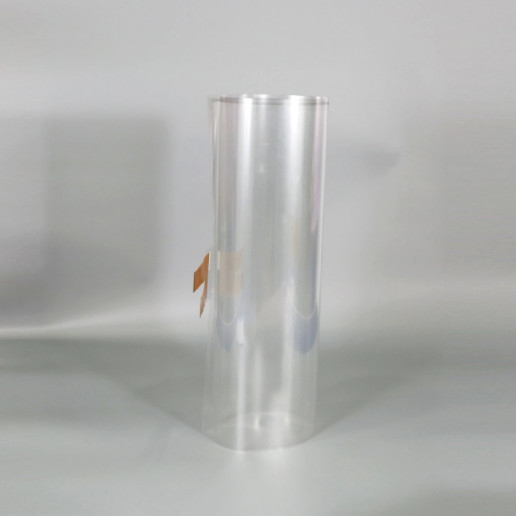

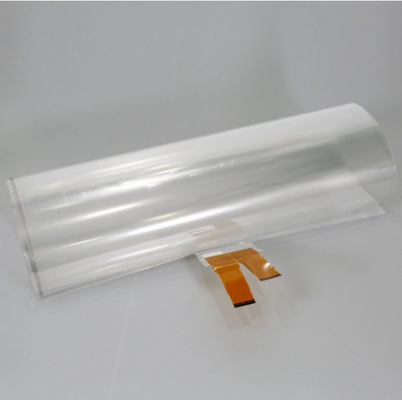

Detail images
Drawing
