Product Details:
|
| Product Name: | PCAP Touch Foil | Type: | Capacitive |
|---|---|---|---|
| Interface: | USB | Touch Point: | 10 Touch Points |
| Shipping Ways:: | UPS. FEDEX. DHL | HS Code: | 8471609000 |
| High Light: | USB PCAP Touch Foil,PCAP Touch Foil 21.5 Inch,Controller Board touch screen foil usb |
||
What is Interactive Touch Foil?
You can turn any standard piece of glass into an interactive touch screen.No matter it is Acrylic or tempered glass. Interactive touch foil are made up of a clear polymer material with a micro-wire sensor grid.These sensors use capacitive technology to accurately track up to 10~40 points of input via your body's electric signal.
Touch screen kiosk and mirror touch screen
Touch foil is widely used for large size touch screen kiosk and mirror touch screen.It saving cost for you compared to big size capacitive touch glass.55"60"65"70"75"80"86" touch foil is the best choice for interactive whiteboard in smart education equipment.
You should prepare large size LCD display,computer with Windows or Android OS,and touch foil.
Touch foil has two outlet positions: long-side outlet and short-side outlet. The default is short-side outlet, if you need long one, please contact the seller.
General Specification
· Detection Method: Projected Capacitance technology using horizontal vertical wires
· Screen ratio: 4:3 /16:9 as standard, other sizes available on request
· Fixing options: Removable and permanent options available
· Position accuracy: Approximately 3 mm absolute, 1 mm relative. No drift
· Alignment: Software drivers provide a calibration facility
· Sensitivity: Can be programmed for different thickness of glass and even use with gloved hands. Standard configuration functions with non-metallised. single construction glass 16mm thick. Double glazing option up to 25mm available*
· Speed of response: Depends upon glass thickness. Typically 50 to 100ms
· Output: USB or RS232.
|
Size
|
21.5 inch(15"-86" are for optional)
|
|
IC
|
Sis
|
|
Touch Point
|
10 touch points
|
|
Touch deviation
|
0.5mm
|
|
Film thickness
|
Almost 100um
|
|
Light transmittance
|
95%
|
|
Safe distance
|
3mm/the distance between the LCD screen and the film
|
|
Working Temp
|
-20 ℃ to + 70 ℃
|
|
Working Humidity
|
0-95%
|
|
Transmission mode
|
Full speed USB 2.0
|
|
Supply voltage
|
5V USB
|
|
Drive Type
|
Plug and play for Windows,For Android or Linux system,we can provide calibration software
|
|
Touch support
|
Click, drag, zoom, rotate
|
|

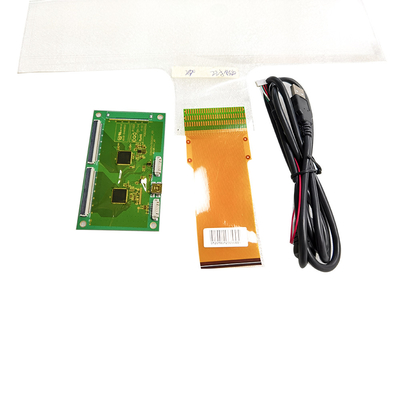

Packing list
|
1 * Touch film circuit control board * 1 USB cable * 1
|
Software
| Scanning | Auto full screen scanning |
| Scanning frequency | 60Hz~130hz |
| Operate system | Windows 7,Windows 8,Windows 10, Andriod,Linux |
| Calibration tool | Precalibrated & Software can be download in CJTouch Website |
|
Windows
|
Win7/8/8.1/10
|
|||
|
Andriod
|
Kernel3.10 or higher
|
|||
|
Linux
|
Kernel3.10 or higher
|
|||

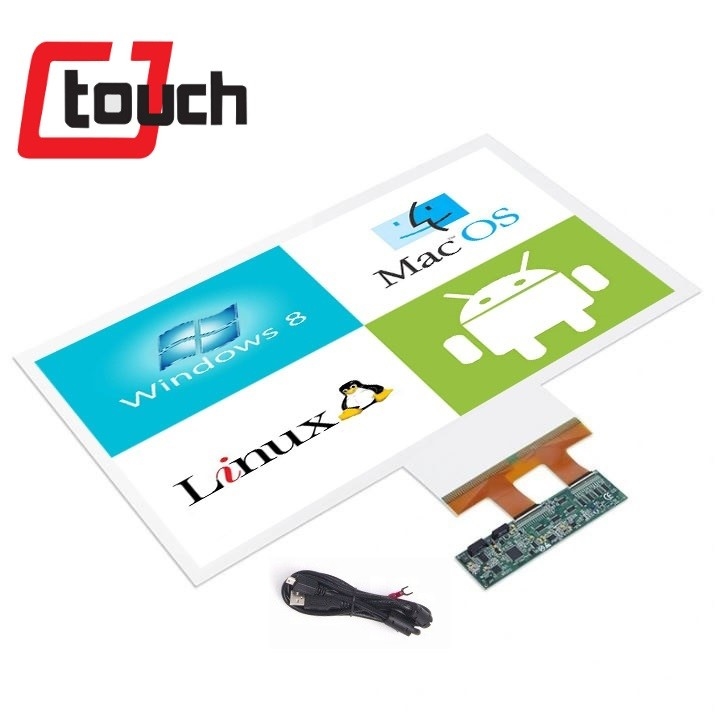

Detail images
Drawing
Application
1. Interactive whiteboard
2. Self-service kiosk
3. Touch table
4. Magic mirror
5. Gaming device
6. Public query machine
7. Industry control system
8. Medical and healthcare kiosk
9. Indoor and outdoor advertising kiosk
10. LCD monitor/ Computer monitor/ PC/ TV
11. Any interactive machine
